Ok, but where do I tell what info the Action button will use to update that row?
I actually created a new thread asking help for it, as I bumped by head on the wall several times yesterday…
here, so I won´t fill this already solved thread with help for a different problem.,
Thanks, good idea to continue in a separate thread. I responded there.

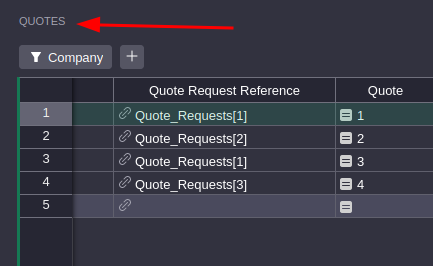

Hi I’m having the same issue. I’ve simply copy-pasted the Duplicate Row action button code from the online example, and edited it to copy one field from my table into a new row.

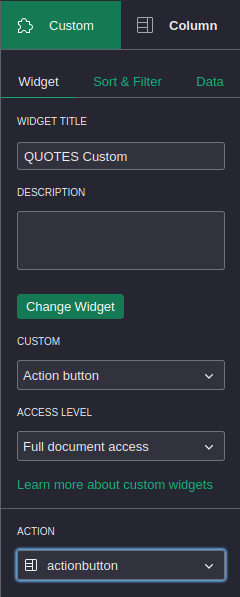

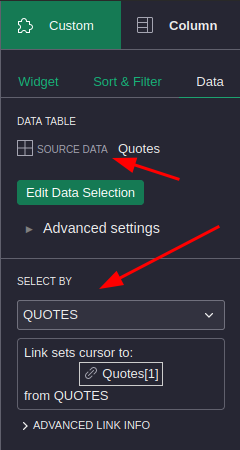

I’m pretty sure I’ve set the widget up correctly, yet it refuses to show me a button.

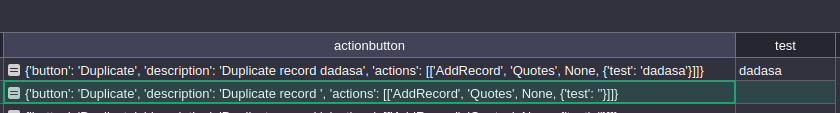

And finally my formula:
}
"button":"Duplicate",
"description":"Duplicate record " + $test,
"actions":[
["AddRecord", "Quotes", None, {"test":$test}]
]
}
I’m self hosting and am on the latest release, is there some docker environment variable I need to set perhaps? Short of that, I have no clue why this shouldn’t work the way I have it set up. But I’m probably overlooking something really obvious
Hello,
I use an ActionButton with UpdateRecord. I want to delete information in a specific cell of a Reference column. It works to assign a new value but a None value does not work. How to? I tried None, 0, “”, [ ], {}.
I took the liberty to document it somehow. You may check it here.
@deuts great doc
I also did some doc on the French forum, i translate it below:
Add the custom “Action Button” widget, based on your table
In the creation panel, allow access to the document
{
"button": "Button display text",
"description": "Text displayed on mouseover
"actions":
[
"AddRecord", "TableId", None, {"Col1": $Col1, "Col2": $Col2 }
]
}
You need to replace TableId with your table’s ID, and Col1, Col2, etc. with your column IDs.
In the widget configuration, in the “Action” field, select this column.
In the widget configuration, in the “Source Data” tab > Select by: choose the table from which you want to duplicate the data. This will allow the cursor to select the entire row when you click on a cell.
Position yourself on a row, click the action button, and your row should be added to the end of the table.
Instead of copying the field directly, which references the entire row of the referenced table, you need to copy the ID of the row, via $My_Column.id
For example:
{
"button":"Duplicate",
"description":"hi",
"actions":
[[
"AddRecord",
"Data",
None,
{
"Ref": $Ref.id
}
]]
}
You must copy the list of IDs of the referenced rows and transform it into a string, via:
str($My_Column.id)
For example:
{
"button":"Duplicate",
"description":"hi",
"actions":
[[
"AddRecord",
"Data",
None,
{
"Ref_multiple": str($Ref_multiple.id)
}
]]
}
Multiple choice columns are type “tuple”. Copying them directly won’t work, even if the destination column is also a multiple-choice column.
You must add an “L” at the beginning of the tuple.
So, we’ll first transform the tuple into a list, add the “L”, and transform the list back into a tuple. The formula is as follows:
multiple_choice = list($A)
multiple_choice.insert(0, "L")
return {
"button":"Duplicate",
"description":":)",
"actions":[[
"AddRecord",
"Table_destination_multi_choice",
None, {
"A":tuple(multiple_choice),
}]]
}
Same as before, choosing the ID of the other table as the target table.
To copy one or more columns from one table to another
You will need to loop to copy all the rows in each targeted column. The formula will be as follows:
actions = []
records = Table_source.lookupRecords()
count = 0
for r in records:
actions.append(["AddRecord", "Target_Table", None,
{
"Name": r.Name,
"Number": r.Number
}
])
return {
"button": "Copy Table",
"description": ":P",
"actions": actions
}
Sample document here: ex - widget "Bouton d'action" - Grist
Syntax:
{
"button":"Remove row",
"description":":)",
"actions":[["RemoveRecord", "TableId", rowId]]
}
Since the “actions” field is a list, you must always keep the two brackets
[[]].
You can write the rowId as is, for example:
"actions":[["RemoveRecord", "TableId", rowId]]
or, for example, request to remove the last row from the table:
"actions":[["RemoveRecord", "Table_to_reduce", Table_a_reduce.lookupOne(sort_by="-id").id]]
Demo here: ex - widget "Bouton d'action" - Grist
If you want to delete a row selected in the table rather than entering the row ID, you must enter the action button formula in the linked table, link the action button widget to the table (select by), and use $id.
You can update one or more columns of the selected row in the table.
{
"button": "Modify columns to YES",
"description": ":)",
"actions":[[
"UpdateRecord",
"TableId",
$id,
{
"Col1": "YES",
"Col2": "YES",
}
]]
}
You need to replace TableId with your table ID, and Col1, Col2, etc. with your column IDs. - Add the custom “Action Button” widget, linked to the table (“Select by”)
In the creation panel, in the “Action” field, select the column containing the action button formula
Position yourself on a row in the table, click the action button, and your row should be updated.
Demo link: ex - widget "Bouton d'action" - Grist
From grist-core/app/common/DocActions.ts at 5f0c3bd8545256b4d3310ace197aace284ce8633 · gristlabs/grist-core · GitHub, the possible actions appear to be as follows:
I tested “BulkAddRecord” but couldn’t get it to work.
It is possible to perform multiple actions at the same time (row duplication, addition, deletion):
{
"description": "Some description text",
"button": "Text of the button itself",
"actions": [ACTIONS_TO_APPLY],
}
With the actions field, which is a list of actions, with this format (for the most common cases):
[
["AddRecord", "TableId", None, {"Col1": Value1, "Col2": Value2, ...}],
["UpdateRecord", "TableId", rowId, {"Col1": Value1, "Col2": Value2, ...}],
["RemoveRecord", "TableId", rowId],
]
Link to the post on French forum, with screenshots : Vue personnalisée pour importer des données d'une table dans une autre - #5 par audezu - Demandes d'aide - le forum Grist
That’s a lot of available actions I wasn’t even aware of. How I wish there’s a documentation for the syntax of them all. Also, especially for delete operations, I wish there’s a pop up confirming if you really want to do that action because we might press it by mistake.
most of these seem to come from the Grist Plugin API
here, the syntax
if you need more complex behavior, you can basically redo the Button widget with the “Widget Builder” widget.
Very instructive !
I tried to write a complete post on the subject, if you want a summary:
